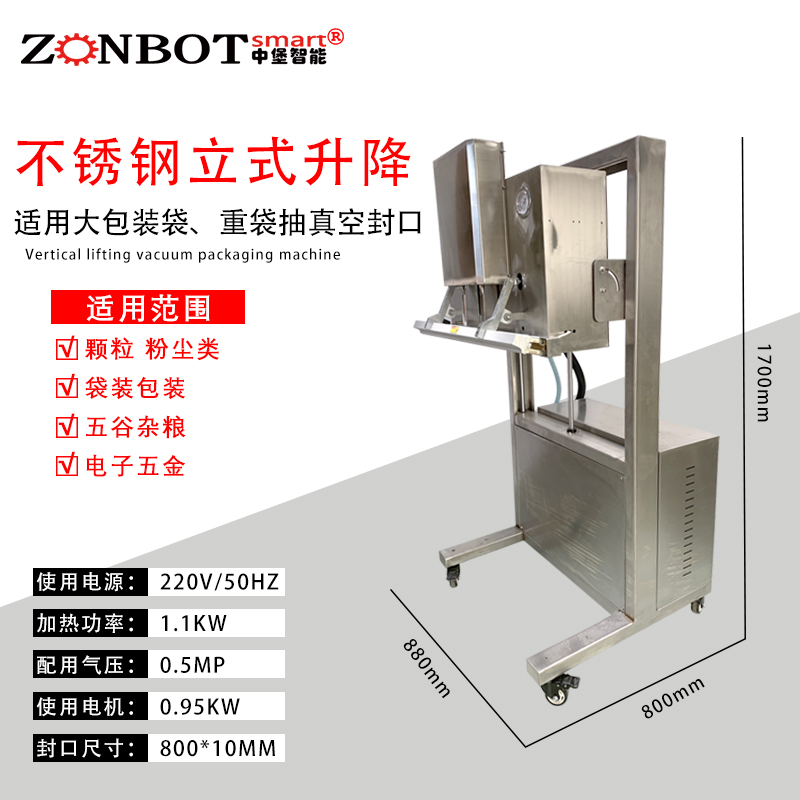

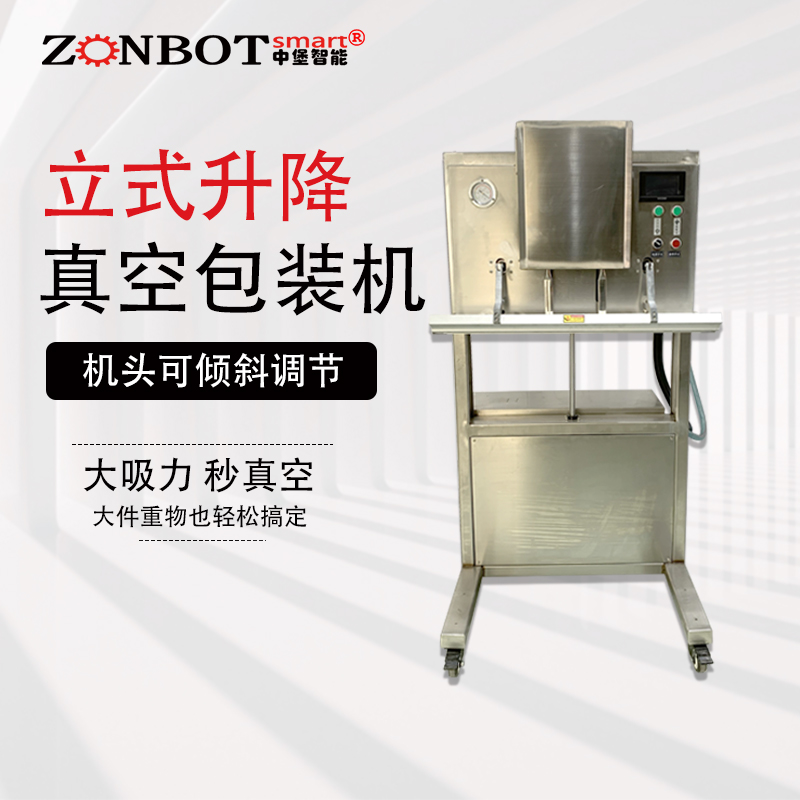

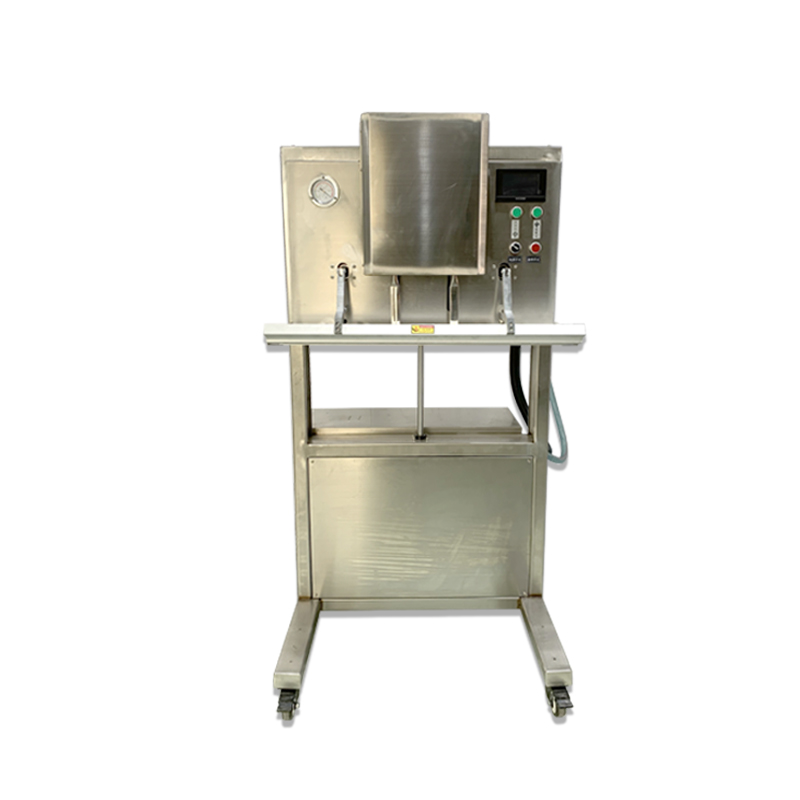

The vertical lifting vacuum packaging machine, not restricted by a vacuum chamber, is suitable for vacuuming and sealing large packaging bags and heavy bags.

Release date:2025-10-17

Breaking Size and Weight Limitations

Unrestricted by the volume of a fixed vacuum chamber, it can handle both large woven bags over 1 meter in size and heavy bags over 50kg (such as rice, feed, and chemical raw materials). These bags can be directly placed on the workbench for vacuuming and sealing, eliminating concerns about "not fitting".

Simplified Operation and Adaptability

Heavy bags do not need to be repeatedly moved in and out of the vacuum chamber; they can be directly laid flat on the workbench. This not only reduces manual labor intensity but also avoids bag damage caused by handling. At the same time, it has stronger compatibility with bag shapes, allowing smooth packaging of irregular large-sized items.
However, this type of machine also has specific application scenarios. It is more suitable for industrial-grade mass packaging of heavy/large bags with fixed specifications, such as in feed factories, grain depots, and chemical enterprises. When used for small-batch, multi-specification small-sized packaging, it is less flexible than machines with a vacuum chamber.
Comparison DimensionVertical Lifting Vacuum Packaging MachineOrdinary Vacuum Packaging Machine (Take Horizontal Type as an Example)
Structural FormThe vacuum chamber or workbench can lift and lower, with a vertical machine layoutThe vacuum chamber is mostly a fixed drawer type or flip-top type, with a horizontal machine layout
Operation MethodItems are directly placed on the lower workbench, and the vacuum chamber lowers and closes without bending overNeed to bend over to put items into the drawer/vacuum chamber or open the top cover for operation
Packaging ObjectsGood at large-sized and heavy-weight items, such as 20kg rice bags and hardware moldsSuitable for small-sized and light-weight items, such as snacks, fresh food, and electronic components
Space OccupationSmall floor area, utilizing space in the vertical direction, suitable for workshops with compact environmentsLarge floor area, extending in the horizontal direction, requiring more operating space
Automation AdaptabilityEasy to connect with production lines, can be equipped with conveyor belts to realize automatic feeding and dischargingMostly single-machine manual operation, with high difficulty in automated integration

II. Detailed Explanation of Key Differences

1. Structure and Operation: Vertical Type is More Labor-Saving, Horizontal Type is More Flexible

  • Vertical Lifting Vacuum Packaging Machine: Its core advantage lies in the "lifting" design. Operators can place materials while standing, and the vacuum chamber automatically lowers and seals without repeated bending, greatly reducing labor intensity. It is especially suitable for high-frequency and heavy-load packaging scenarios.
  • Ordinary Vacuum Packaging Machine: The horizontal drawer type is the most common. It requires putting items into the drawer-type vacuum chamber, then manually pushing it in or covering the top cover. The operation is more flexible, but the weight and size of a single package are limited, and it is easy to feel fatigued during long-term operation.

2. Packaging Capacity: Vertical Type Focuses on "Large and Heavy", Horizontal Type Focuses on "Small and Light"

  • Vertical Lifting Vacuum Packaging Machine: It has a larger vacuum chamber volume and stronger load-bearing capacity (some models can bear more than 50kg). It can handle large bags of granules (such as feed and plastic granules) and large hardware parts that ordinary machines cannot accommodate.
  • Ordinary Vacuum Packaging Machine: It has a smaller vacuum chamber volume, with a load-bearing capacity usually within 5kg. It is more suitable for small-batch and small-sized item packaging in industries such as food and medicine, such as cooked food, masks, and chips.

3. Scenario Adaptation: Vertical Type is Suitable for Industrial Lines, Horizontal Type is Suitable for Small Workshops/Stores

  • Vertical Lifting Vacuum Packaging Machine: It is mostly used in industrial production lines or large factories. It can be linked with automatic feeding and sorting equipment to realize batch and continuous packaging and improve production efficiency.
  • Ordinary Vacuum Packaging Machine: It has a lower price and smaller size, suitable for scenarios such as small processing plants, supermarkets, and catering stores. It is used for small-batch and multi-category flexible packaging without the need for complex supporting equipment.
