Hardware Composition

PLC Controller

1. Core Operation and Control: As the core component of the control system, the PLC (Programmable Logic Controller) receives signals from various sensors, such as product presence sensors and film detection sensors. It performs logical operations and processing according to preset programs, and sends control commands to various actuators, such as drive motors and pneumatic components, to accurately control the execution sequence and time of each packaging process including feeding, film sleeving, sealing, cutting and heat shrinking.
2. Stability and Reliability: With high reliability, it can work stably in harsh industrial environments, has strong anti-interference ability, and can ensure the equipment operates continuously for a long time without failure, guaranteeing the stability and consistency of the packaging process.

Touch Screen

1. Human-Computer Interaction Interface: As a window for human-computer interaction, the touch screen provides an intuitive and convenient operation platform for operators. Operators can easily set various packaging parameters, such as sealing and cutting time, shrinking temperature, and conveying speed, through the touch screen. Meanwhile, the touch screen can real-time display the operating status of the equipment, such as current working mode, operating parameters of various components, and fault alarm information, facilitating operators to understand the equipment operation at any time and make adjustments and maintenance in a timely manner.
2. Parameter Setting and Storage: It supports the setting and storage of multiple parameters. It can preset multiple packaging schemes according to different product packaging requirements. Operators only need to select the corresponding scheme on the touch screen to quickly switch the equipment parameters without resetting one by one, greatly improving work efficiency. In addition, the touch screen also has a password protection function to prevent unauthorized personnel from modifying parameters at will and ensure the safety and stability of equipment operation.

Software Functions

Parameter Setting and Adjustment Function

1. Precise Control: Through the software of the control system, key parameters such as sealing and cutting time, shrinking temperature, and conveying speed can be accurately set and adjusted. For example, the sealing and cutting time can be accurate to the millisecond level, the shrinking temperature can be adjusted with a small temperature gradient within a certain range, and the conveying speed can also be accurately set according to product size and packaging requirements, ensuring that different products obtain ideal packaging effects.

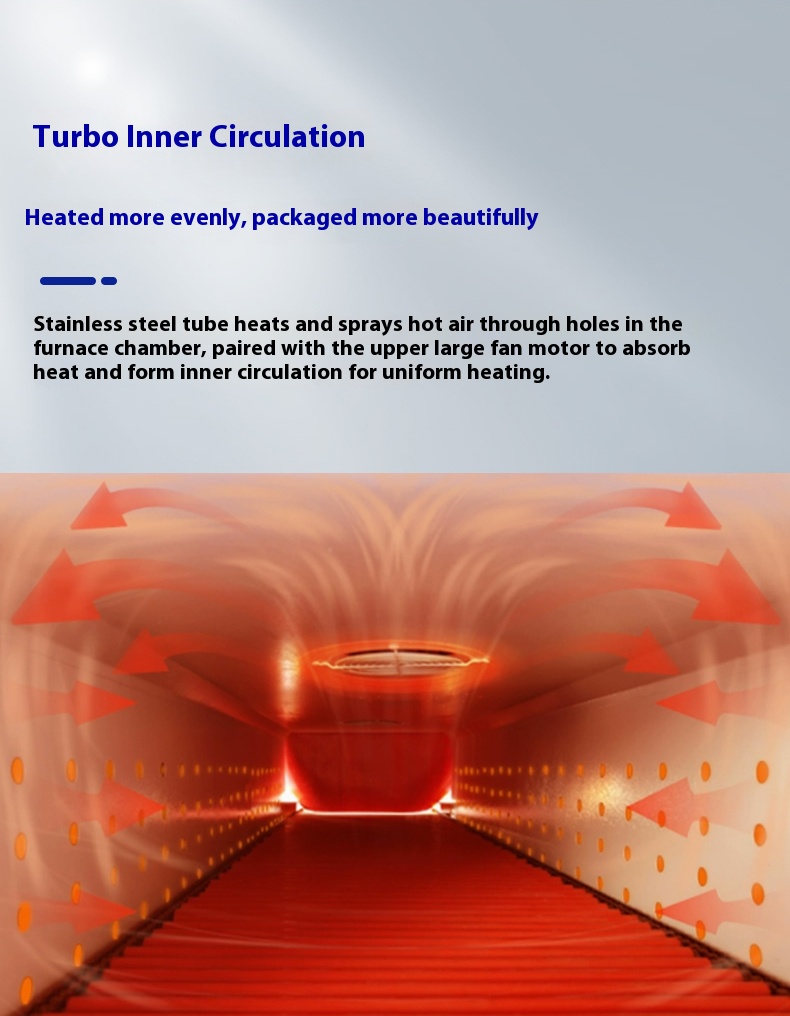

2. Automatic Adjustment and Optimization: Some advanced control systems also have an automatic adjustment function, which can automatically adjust and optimize parameters according to preset packaging quality standards. For example, during the heat shrinking process, the system can automatically adjust the heating temperature and fan wind speed according to the shrinking condition of the heat shrinkable film to ensure uniform shrinking of the heat shrinkable film and close fitting on the product surface.

Operation Monitoring and Fault Diagnosis Function

1. Real-time Monitoring: The control system real-time monitors the operating status of various components of the equipment, including motor speed, heating component temperature, and pneumatic component pressure. These real-time data are fed back to the PLC controller through sensors, and then displayed to operators in a graphical interface through the touch screen, enabling operators to intuitively understand the equipment operation.
2. Fault Diagnosis and Alarm: Once an abnormal condition is detected, such as excessive temperature, motor overload, or insufficient film supply, the control system will immediately perform fault diagnosis and display detailed fault information and alarm prompts on the touch screen. At the same time, the system will automatically record the fault time, location, and related parameters for maintenance personnel to quickly locate and eliminate faults. Some control systems also have remote monitoring and alarm functions, which can send fault information to relevant personnel's mobile phones or computers through the network to achieve timely response and processing.

Production Data Statistics and Management Function

1. Data Statistics: The control system can automatically 统计 various data during the production process, such as packaging quantity, production speed, equipment operating time, and fault shutdown time. This data is of great significance for enterprise production management and quality control, helping enterprises analyze production efficiency, evaluate equipment performance, and make production plans and cost accounting.
2. Data Storage and Query: Production data can be stored in the control system's memory or external storage devices for operators to query and call at any time. Meanwhile, the data can be exported to a computer or the enterprise's production management system through a network interface for further analysis and processing, providing data support for enterprise decision-making.

Communication and Networking Function

1. Internal Communication: The control system realizes high-speed data transmission and communication between various hardware modules through the internal communication bus, ensuring accurate and timely information interaction between the PLC controller, touch screen, sensors, and actuators to achieve coordinated operation of various parts of the equipment.
2. External Networking: Some high-end fully automatic side sealing heat shrink wrapping machine control systems support external networking functions, and can communicate with the enterprise's production management system or other devices through Ethernet, WiFi, etc. This enables enterprises to centrally monitor and manage multiple devices, optimize the production process, and improve production efficiency and management level. For example, in a large-scale packaging production line, the networking function can integrate multiple heat shrink wrapping machines with front-end filling equipment and back-end labeling equipment to realize the automation and intellectualization of the entire packaging production line.
