Hardware Components

PLC Controller

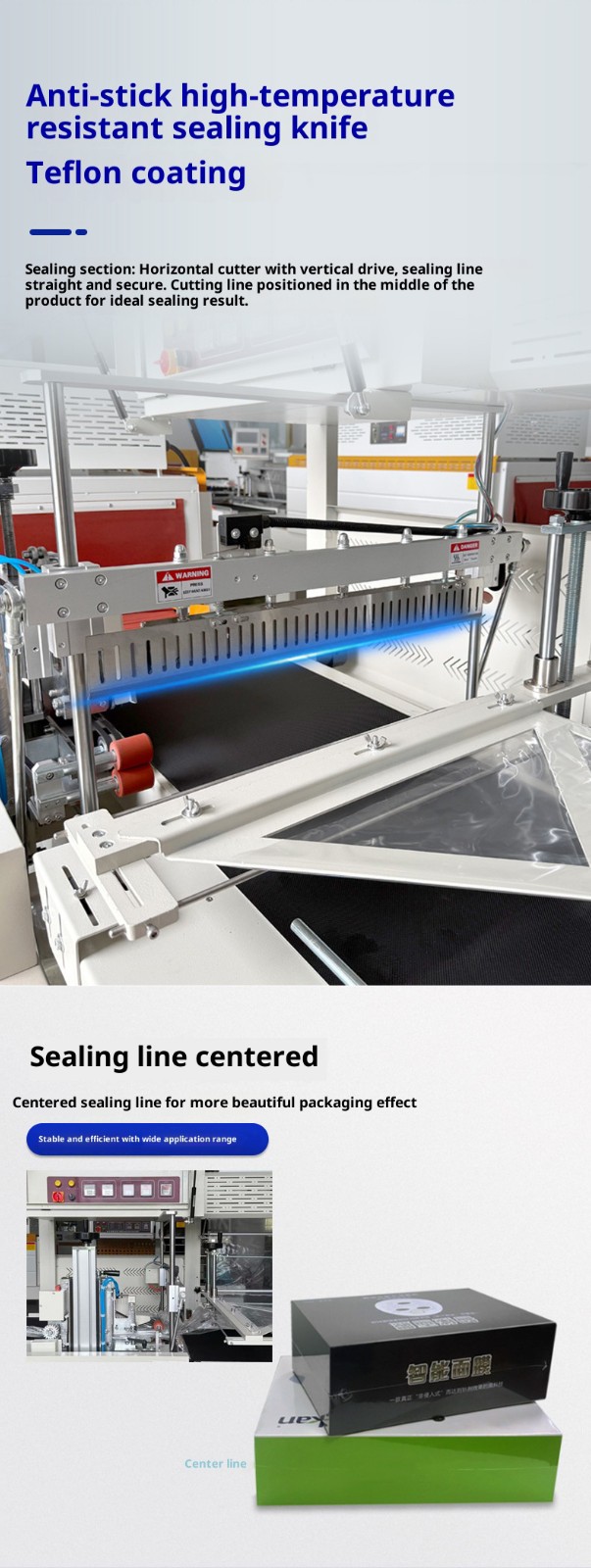

• Core Computing and Control: The PLC (Programmable Logic Controller) is the core component of the control system. It receives signals from various sensors, such as product in-position sensors and film detection sensors, performs logical operations and processing based on pre-set programs, and sends control commands to various actuators, including drive motors and pneumatic components, to precisely control the execution sequence and timing of each packaging process, such as feeding, film sleeving, sealing and cutting, and heat shrinking.
• Stability and Reliability: Featuring high reliability, the PLC can operate stably in harsh industrial environments with strong anti-interference capability, ensuring long-term continuous operation of the equipment without failures and maintaining the stability and consistency of the packaging process.

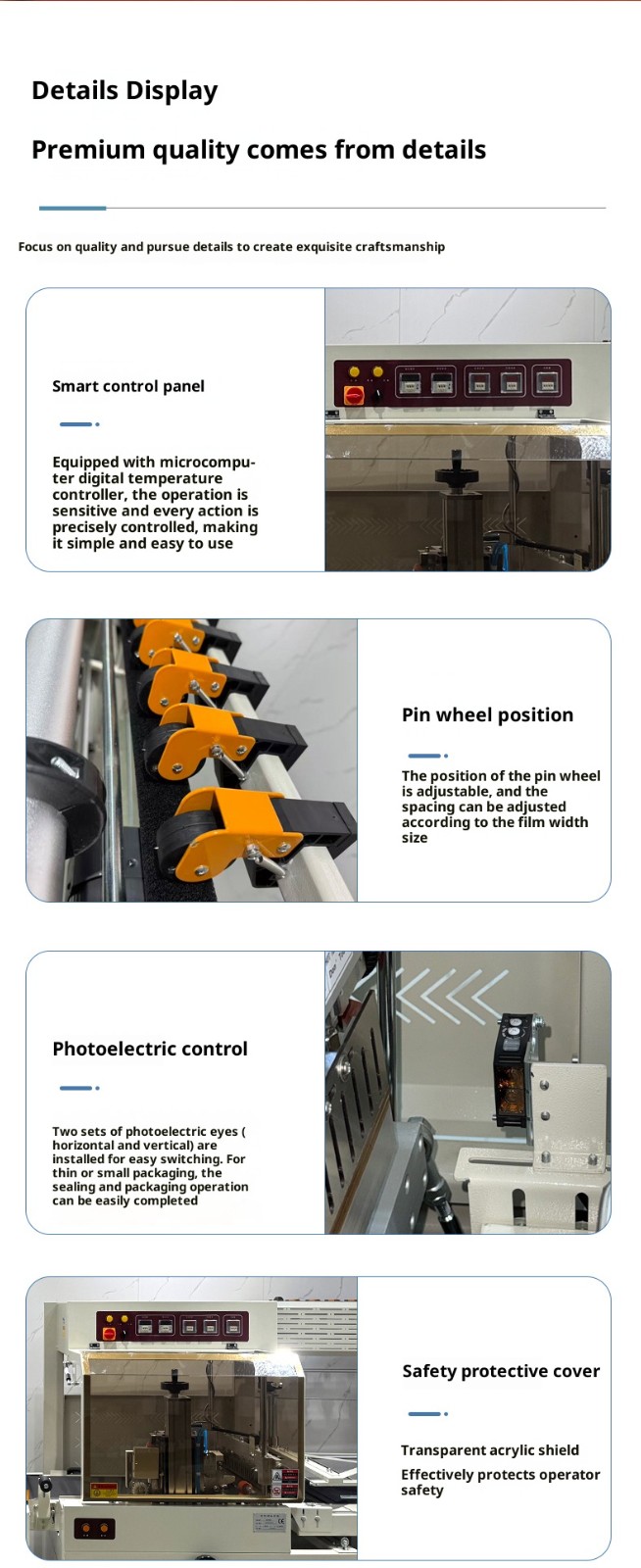

Touch Screen

• Human-Machine Interaction Interface: As a human-machine interaction window, the touch screen provides operators with an intuitive and convenient operation platform. Operators can easily set various packaging parameters, such as sealing and cutting time, shrinkage temperature, and conveying speed, via the touch screen. Meanwhile, the touch screen can display real-time equipment operating status, including current working mode, operating parameters of each component, and fault alarm information, facilitating operators to monitor equipment operation and make timely adjustments and maintenance.
• Parameter Setting and Storage: It supports the setting and storage of multiple parameters. Multiple packaging schemes can be pre-set according to different product packaging requirements. Operators only need to select the corresponding scheme on the touch screen to quickly switch the equipment’s working parameters without repeated individual settings, greatly improving work efficiency. In addition, the touch screen is equipped with a password protection function to prevent unauthorized personnel from arbitrarily modifying parameters, ensuring the safety and stability of equipment operation.

Software Functions

Parameter Setting and Adjustment Function

• Precise Control: The software of the control system enables accurate setting and adjustment of key parameters such as sealing and cutting time, shrinkage temperature, and conveying speed. For instance, the sealing and cutting time can be precise to the millisecond level, the shrinkage temperature can be adjusted in small temperature gradients within a certain range, and the conveying speed can be precisely set according to product dimensions and packaging requirements, guaranteeing ideal packaging results for different products.

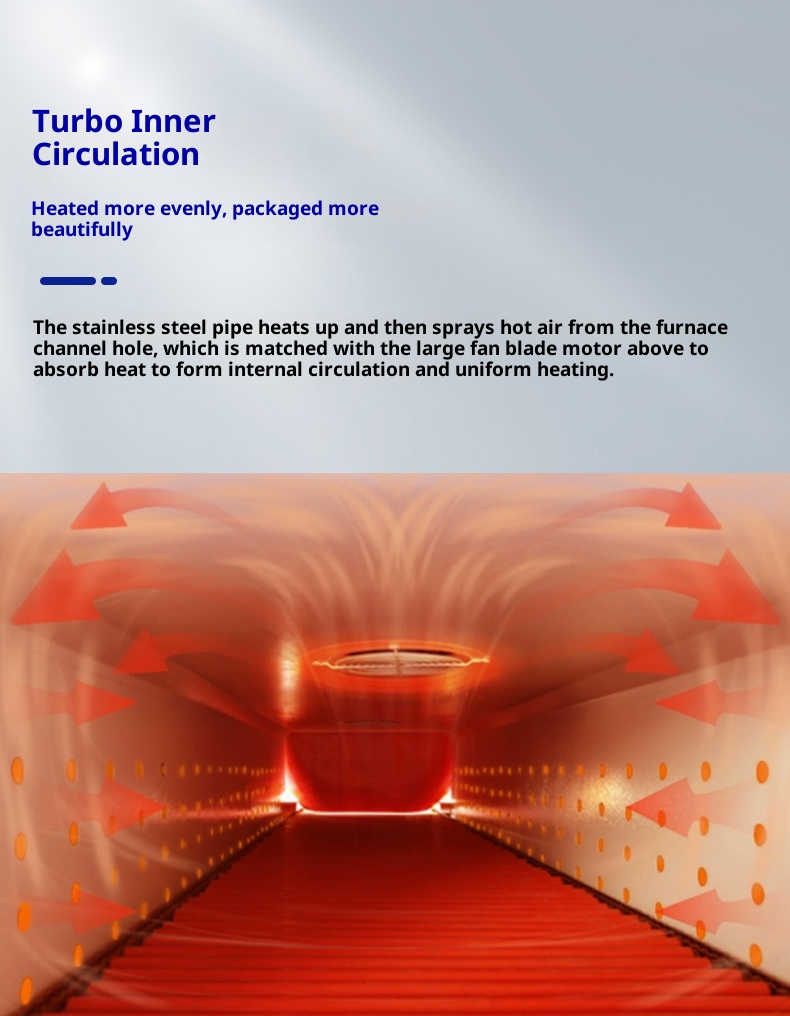

• Automatic Adjustment and Optimization: Some advanced control systems are equipped with an automatic adjustment function, which can fine-tune and optimize parameters automatically in accordance with pre-set packaging quality standards. For example, during the heat shrinking process, the system can automatically adjust the heating temperature and fan wind speed based on the shrinkage condition of the heat shrink film to ensure uniform shrinkage and tight fitting of the film on the product surface.

Operation Monitoring and Fault Diagnosis Function

• Real-Time Monitoring: The control system monitors the operating status of all equipment components in real time, including motor speed, heating element temperature, and pneumatic component pressure. Real-time data is fed back to the PLC controller via sensors and displayed to operators in a graphical interface on the touch screen, allowing for intuitive understanding of equipment operation.
• Fault Diagnosis and Alarm: When abnormalities are detected, such as over-temperature, motor overload, or insufficient film supply, the control system immediately conducts fault diagnosis and displays detailed fault information and alarm prompts on the touch screen. Meanwhile, the system automatically records the time, location, and relevant parameters of faults, enabling maintenance personnel to quickly locate and resolve issues. Some control systems also support remote monitoring and alarm functions, sending fault information to relevant personnel’s mobile phones or computers via the network for timely response and handling.

Production Data Statistics and Management Function

• Data Statistics: The control system automatically collects various production data, including packaging quantity, production speed, equipment running time, and fault downtime. These data are crucial for enterprise production management and quality control, helping enterprises analyze production efficiency, evaluate equipment performance, formulate production plans, and conduct cost accounting.
• Data Storage and Query: Production data can be stored in the control system’s memory or external storage devices for easy access and query by operators at any time. Additionally, data can be exported to computers or enterprise production management systems through network interfaces for further analysis and processing, providing data support for enterprise decision-making.

Communication and Networking Function

• Internal Communication: The control system realizes high-speed data transmission and communication among all hardware modules via an internal communication bus, ensuring accurate and timely information interaction between the PLC controller, touch screen, sensors, actuators, and other components for coordinated operation of the entire equipment.
• External Networking: Some high-end control systems for fully automatic side-sealing heat shrink packaging machines support external networking, enabling connection with enterprise production management systems or other equipment via Ethernet, WiFi, and other means. This allows enterprises to achieve centralized monitoring and management of multiple machines, optimize production processes, and enhance production efficiency and management levels. For example, in a large-scale packaging production line, networking can integrate multiple heat shrink machines with front-end filling equipment and back-end labeling equipment, realizing automated and intelligent control of the entire packaging production line.
