When adjusting the labeling speed of the labeling machine, the labeling accuracy can be ensured to remain unaffected through methods such as precise control, optimization of the mechanical structure, and real-time monitoring and feedback. The details are as follows:
Regarding the Control System
- Precise Motor Control: Employ high-precision servo motors and pair them with advanced motor drivers. Servo motors can accurately control the rotation speed and position. When adjusting the labeling speed, the motor runs precisely according to the set speed curve through the driver, avoiding speed fluctuations. For example, during the speed change process, the driver can automatically compensate for the motor's torque to ensure the stability and accuracy of label conveyance.
- Optimized Sensor Detection: Use high-sensitivity and high-precision sensors to detect the positions of products and labels. When the labeling speed changes, the sensors can quickly and accurately capture the real-time position information of products and labels and transmit the signals to the control system in a timely manner. At the same time, precisely adjust and fix the installation positions of the sensors to prevent the sensors from shifting due to vibrations or other factors, which could affect the detection accuracy.
- Automatic Parameter Compensation Algorithm: Set an automatic compensation algorithm in the control system, which automatically adjusts relevant parameters according to the change in the labeling speed. For instance, when the speed increases, the algorithm automatically increases the label conveyance length compensation value to offset the stretching or shrinking of the label caused by the speed change. When the speed decreases, the compensation value is correspondingly reduced to ensure that the label can be accurately affixed to the specified position of the product at different speeds.
Regarding the Mechanical Structure
- Stable Conveying System: Ensure that the conveyor belt has a uniform material, a flat surface, and good wear resistance and tensile resistance. When adjusting the labeling speed, the conveyor belt will not slip or deviate due to speed changes. Meanwhile, optimize the tensioning device of the conveyor belt and adopt an automatic tensioning mechanism that can automatically adjust the tension according to the running state of the conveyor belt, ensuring that the conveyor belt is always at an appropriate tension level, thus stably conveying products and labels.

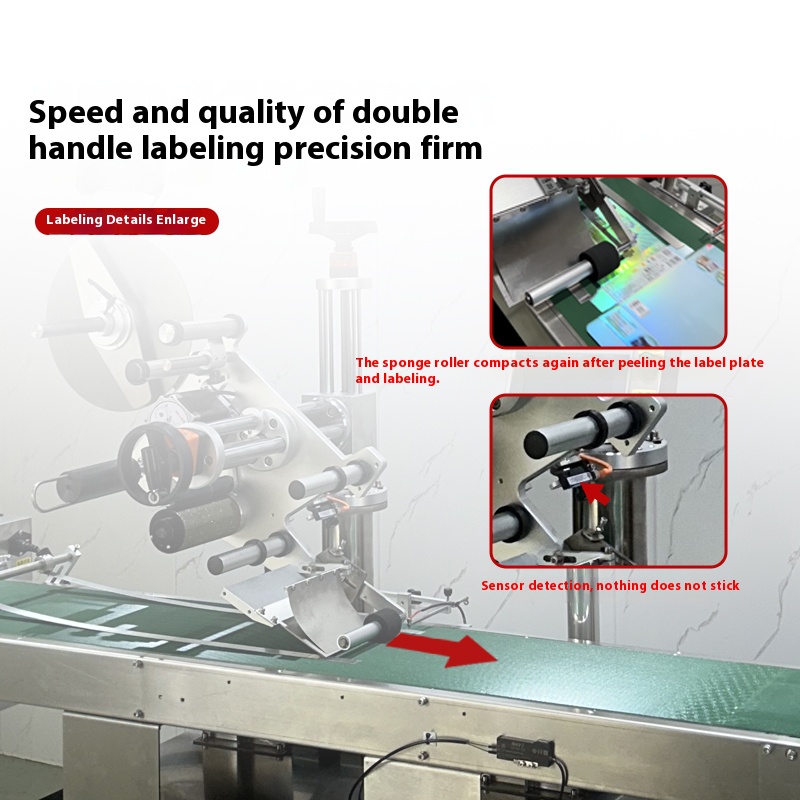

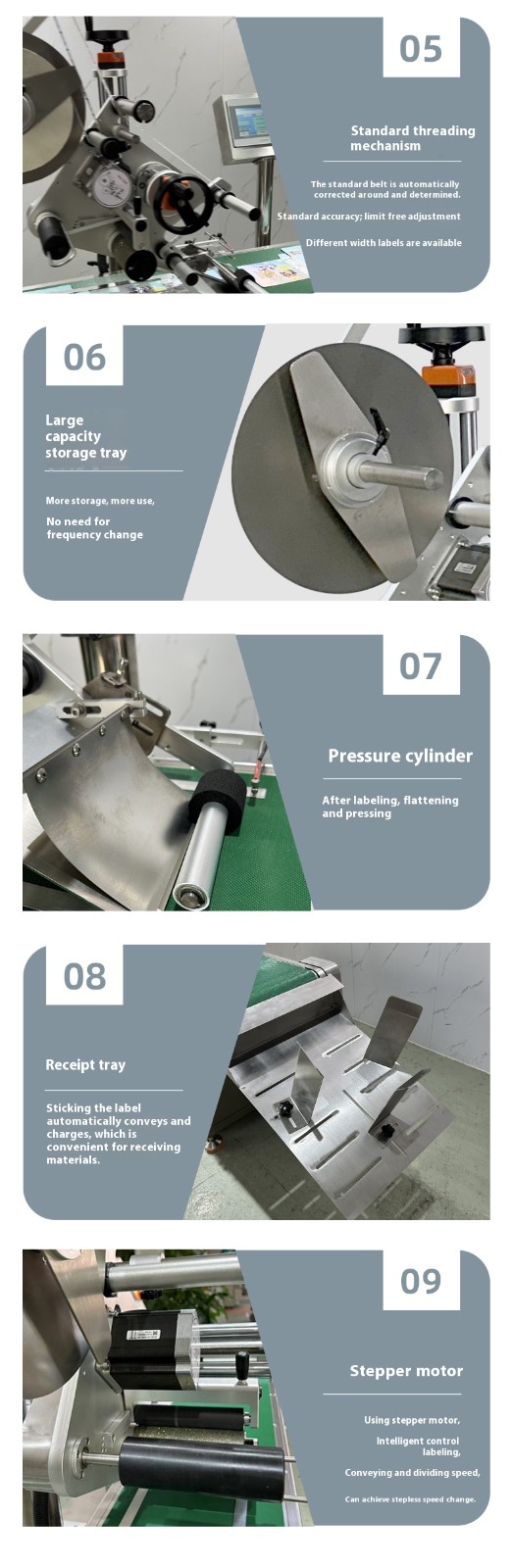

- High-Precision Labeling Head: All components of the labeling head, such as the label peeling plate and the pressure roller, should have high machining precision and assembly precision. These components can maintain a stable working state at different labeling speeds. For example, the angle and position of the peeling plate are precisely adjusted so that the label maintains the correct angle and tension during the peeling process. The pressure of the pressure roller is uniform and can be precisely adjusted to ensure that the label fully adheres to the surface of the product and is accurately positioned when being pasted.
- Lubrication and Maintenance of Mechanical Components: Regularly lubricate and maintain the mechanical components of the labeling machine to ensure the smooth operation of all moving parts. Good lubrication can reduce friction and wear, preventing a decrease in labeling accuracy caused by mechanical failures. Before adjusting the labeling speed, check the wear condition of the mechanical components and replace the severely worn components in a timely manner to ensure the overall accuracy of the equipment.
Regarding Operation and Debugging
- Gradual Speed Adjustment: When adjusting the labeling speed, do not suddenly change the speed significantly. Instead, use a gradual increase or decrease method. The adjustment range each time should not be too large. Observe the running condition of the equipment at the new speed to ensure that the labeling accuracy is not affected. If a deviation in labeling accuracy is found, make timely fine adjustments until the optimal balance between speed and accuracy is found.
- Real-Time Monitoring and Feedback: During the operation of the labeling machine, monitor the labeling accuracy in real time through methods such as a visual inspection system or manual random inspection. Once a deviation in the labeling position is found, promptly feedback the information to the operator or the control system. The control system automatically makes adjustments based on the feedback information, or the operator manually adjusts the relevant parameters according to the feedback results to ensure that the labeling accuracy always meets the requirements.
- Consistency of Products and Labels: Ensure that the products to be labeled and the labels are consistent in terms of size, shape, material, etc. If there are significant differences in the specifications of the products or labels, it will affect the labeling accuracy, especially at different labeling speeds, and this impact will be more obvious. Therefore, conduct strict quality inspections on the products and labels before production, and eliminate products and labels that do not meet the specifications, which helps to ensure the stability of the labeling accuracy
